Simagic P2000-S200RF Hydraulic Pedals – 2 Pedals, 200 kg Load Cell
Pedal choice affects how you control braking and throttle input throughout a lap.
Choosing your configuration
This listing is for Simagic P2000-S200RF Hydraulic Pedals – 2 Pedals, 200 kg Load Cell. Use the specifications and package contents below to check which components are supplied.
Compare the pedal arrangement, connection method and mounting requirements. Check whether a clutch, heel rest or baseplate is part of the selected version, and whether the set connects directly to your PC or through a supported wheelbase.

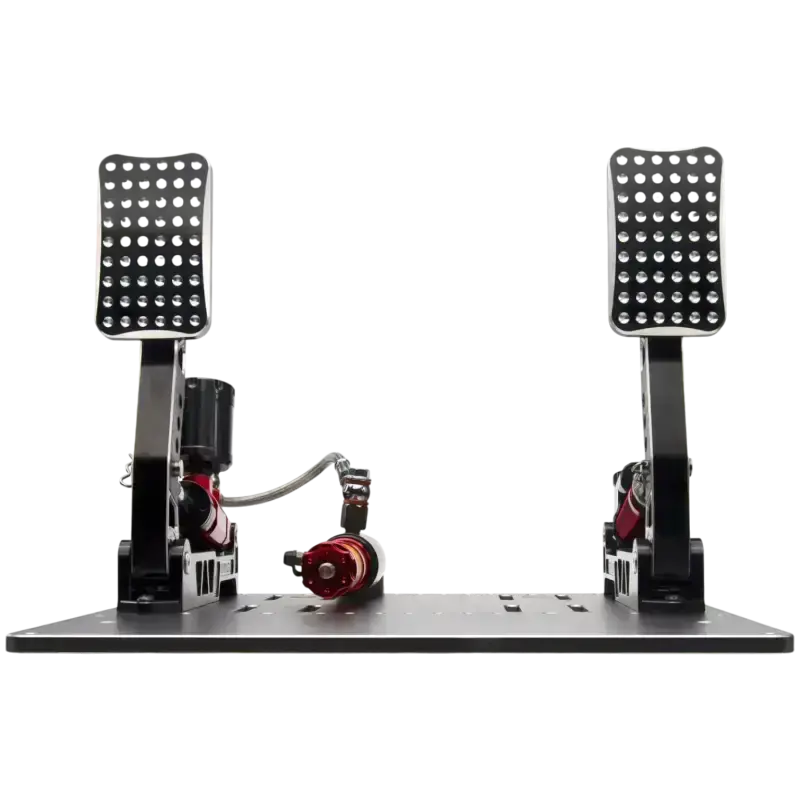

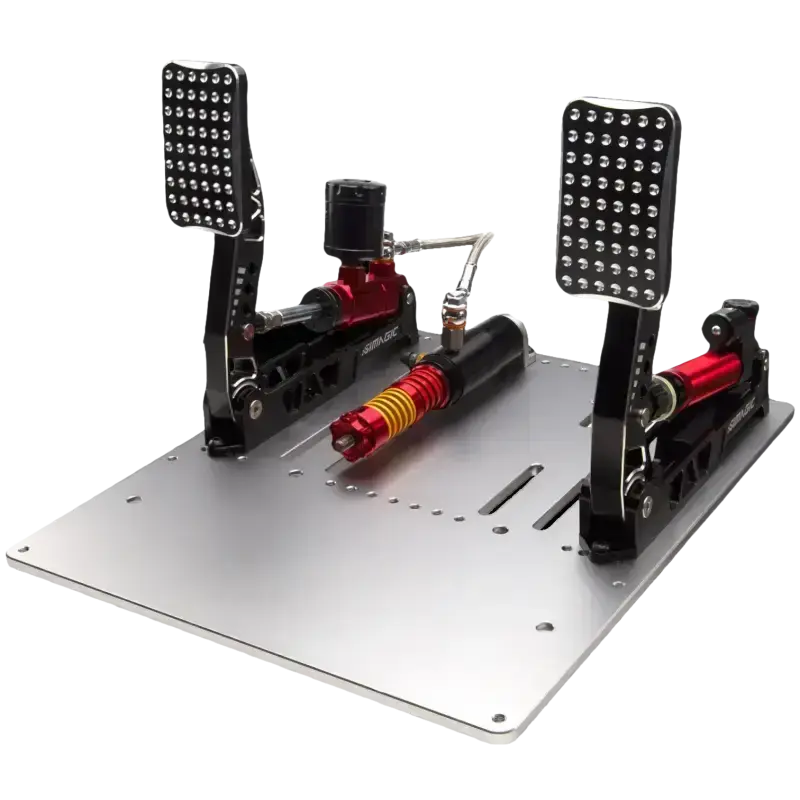

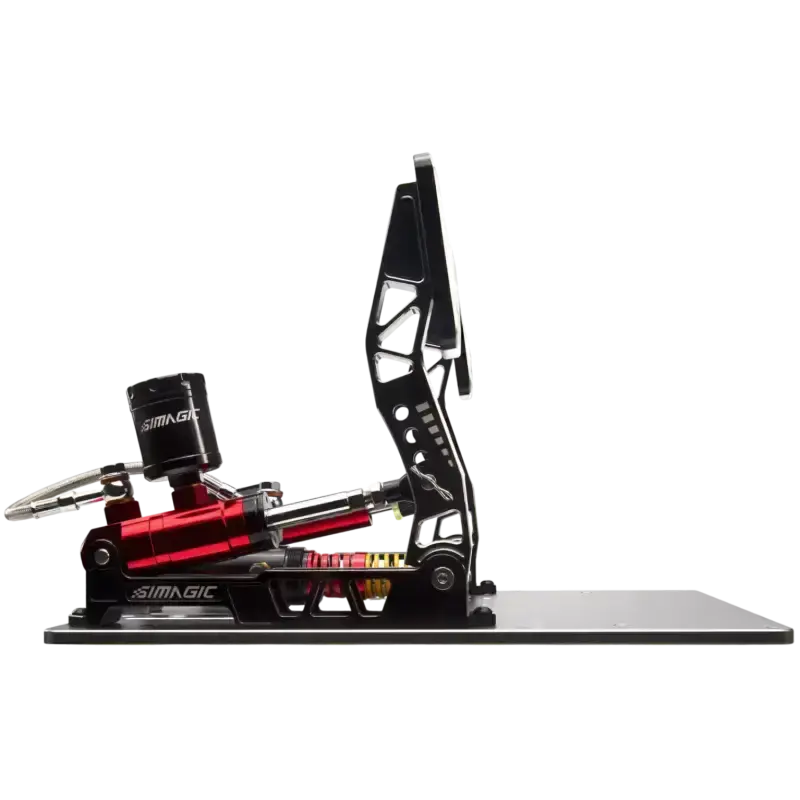

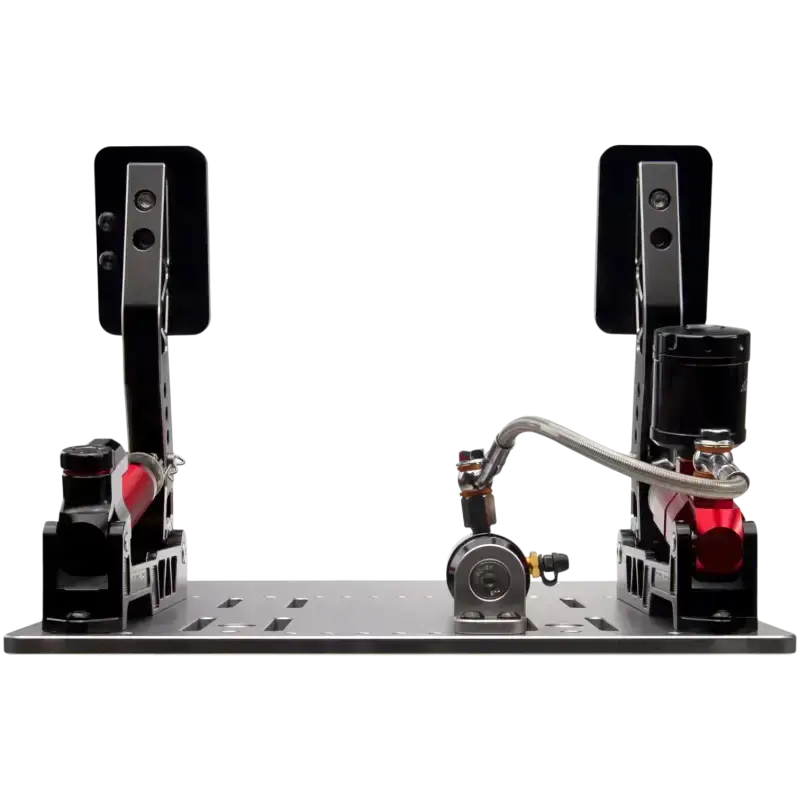

A two-pedal hydraulic sim racing set with a 200 kg load cell brake, adjustable throttle and CNC-machined aluminium construction.
The Simagic P2000-S200RF pairs a hydraulic brake with an adjustable throttle for drivers who race without a clutch pedal. Its 200 kg load cell measures braking force, while the dual-pump brake, included spring options and adjustable throttle let you tune the pedal feel to your driving style. SimPro Manager adds calibration, deadzone and output-curve controls on PC.
Why choose this product?
- A hydraulic brake and 200 kg load cell support repeatable, pressure-based braking.
- Throttle damping, travel and force are adjustable for more precise acceleration.
- CNC-machined aluminium construction and a supplied mounting plate provide a sturdy cockpit installation.
Product details
Hydraulic brake feel

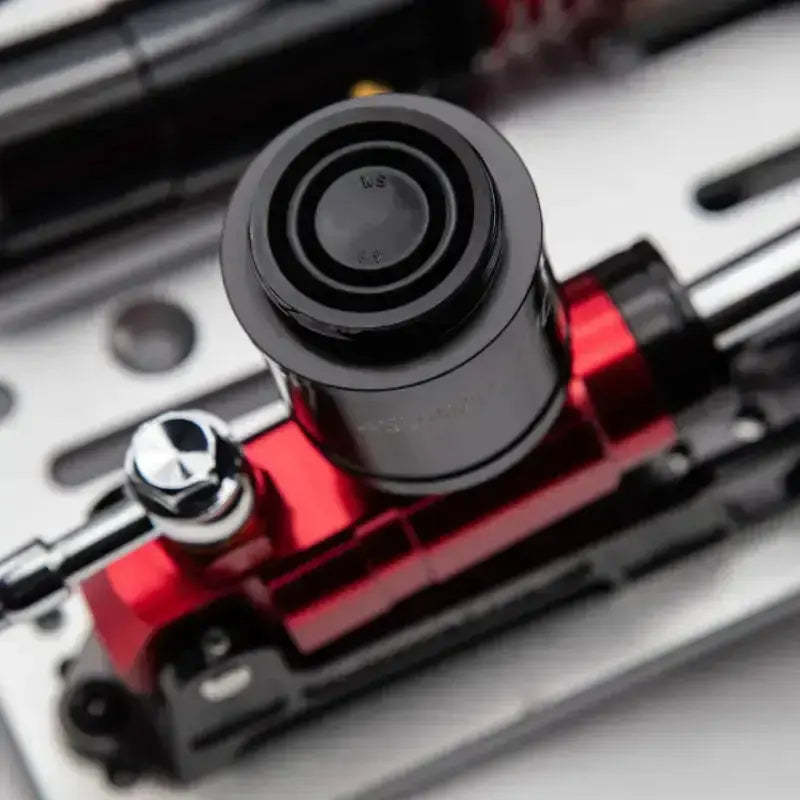

The brake combines a main and auxiliary cylinder linked by braided lines. Four brake spring options offer different force levels. The 200 kg load cell turns applied pressure into the braking input, helping you build consistent muscle memory.
Adjustable throttle response
Simagic's integrated throttle cylinder allows adjustment of damping, travel and force. Position the pedals to suit your cockpit and driving position.
SimPro Manager setup
Calibrate the pedal axes, tune deadzones and output curves and save profiles with SimPro Manager. Simagic specifies 12-bit (4096-step) full-axis output.
Compatibility
Connect directly to a Windows PC by USB or through a compatible Simagic wheelbase. A rigid cockpit mounting surface is recommended for the high-force brake; check the mounting dimensions against your rig. This set has a brake and throttle only.
To expand a P2000 setup, see the P2000 Heel Stop. The P-HPR haptic motor uses the P2000 control box supplied with the pedal set and a separate peripheral power supply. Check the hardware requirements before ordering.
Specifications
Model
P2000-S200RF
Pedals
Brake and throttle (2 pedals)
Brake
Hydraulic dual-pump system, 200 kg load cell
Throttle
Adjustable damping, travel and force
Resolution
12-bit (4096-step) full-axis output
Material
CNC-machined aluminium alloy
Connection
USB to PC or compatible Simagic wheelbase
Dimensions
326 × 380 × 258.84 mm (L × W × H)
Net weight
5.2 kg
EAN
6975472770543
What's in the box?
- P2000-S200RF brake and throttle pedals
- Brake springs
- Pedal control box
- Mounting plate
- USB cable
- 3M stickers
- Installation kit
- Warranty card
Pros and cons
Pros: hydraulic braking, 200 kg load cell, adjustable throttle and software calibration.
Consideration: no clutch is included; the strong brake needs a sturdy mounting surface.
Frequently asked questions
Does the P2000-S200RF include a clutch?
No. This is the two-pedal version with a brake and throttle.
Can I connect the pedals directly to a PC?
Yes. Simagic supports a USB connection to PC or connection through a compatible Simagic wheelbase.
Can I tune the pedal response?
Yes. The throttle and brake spring options change the physical feel, while SimPro Manager adjusts calibration, deadzones and output curves.
