Next Level Racing ELITE 160 DD FRONT AND SIDE MOUNT ADAPTER
A wheelbase mount or clamp connects the base to a desk or cockpit.
Choosing your configuration
This listing is for Next Level Racing ELITE 160 DD FRONT AND SIDE MOUNT ADAPTER. Use the specifications and package contents below to check which components are supplied.
Check the exact wheelbase, mounting holes and support surface. Allow room for cable connections and adjustment of the driving position.

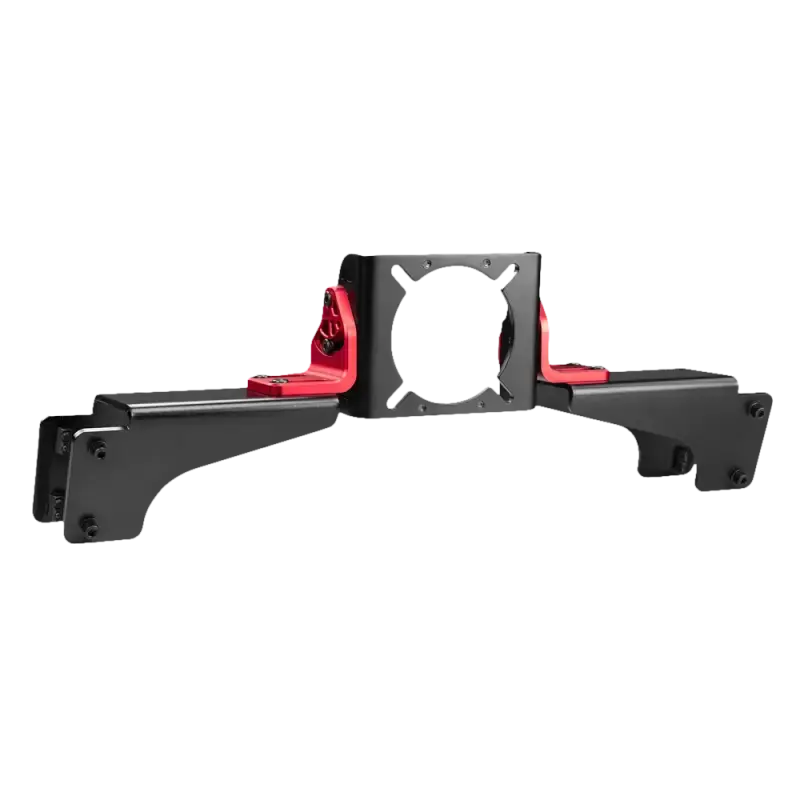

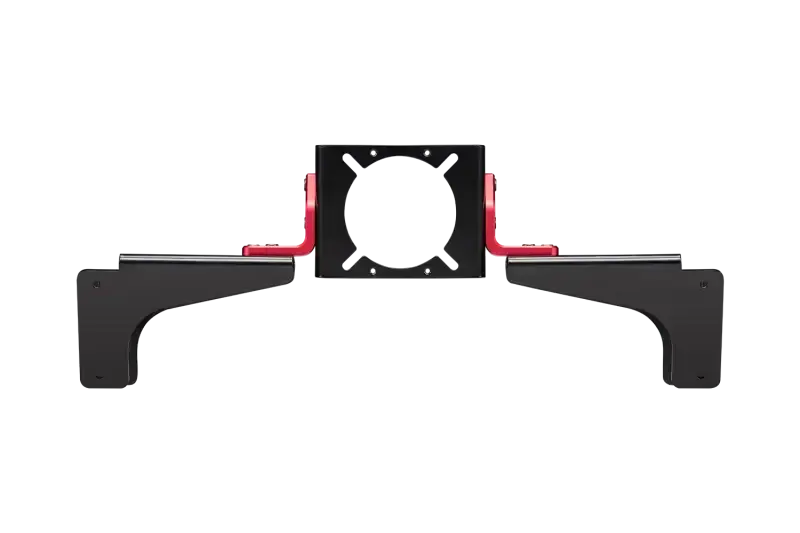

A front-and-side direct-drive mount for Next Level Racing F-GT Elite 160 Series cockpits.
The Elite 160 DD Side and Front Mount Adapter combines anodized 6061 aluminium with powder-coated carbon steel. It provides 70 degrees of total tilt plus height and horizontal adjustment for an F-GT Elite 160 Series cockpit.
Why choose this product?
- Front and side mounting in one kit supports multiple officially listed direct-drive wheelbases.
- 70 degrees of tilt, height adjustment and horizontal adjustment help position the wheelbase for the driver.
Product details
Next Level Racing ELITE 160 DD FRONT AND SIDE MOUNT ADAPTER
The Elite 160 DD Side and Front Mount Adapter combines anodized 6061 aluminium with powder-coated carbon steel. It provides 70 degrees of total tilt plus height and horizontal adjustment for an F-GT Elite 160 Series cockpit.
Compatibility
Platform: This mechanical adapter does not determine PC or console compatibility.

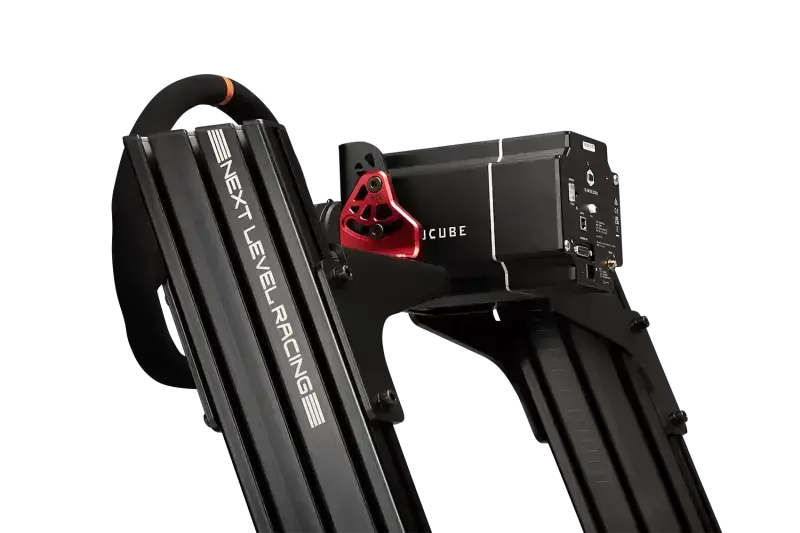

Connection and ecosystem: NLR lists Fanatec DD1/DD2 and CSL DD Range, Simucube 2/3, Simagic Alpha/M10, VRS DirectForce Pro, Mige 130 and Kollmorgen AKM 52-54. Simagic Alpha Evo models require the Simagic MB-F Bracket.

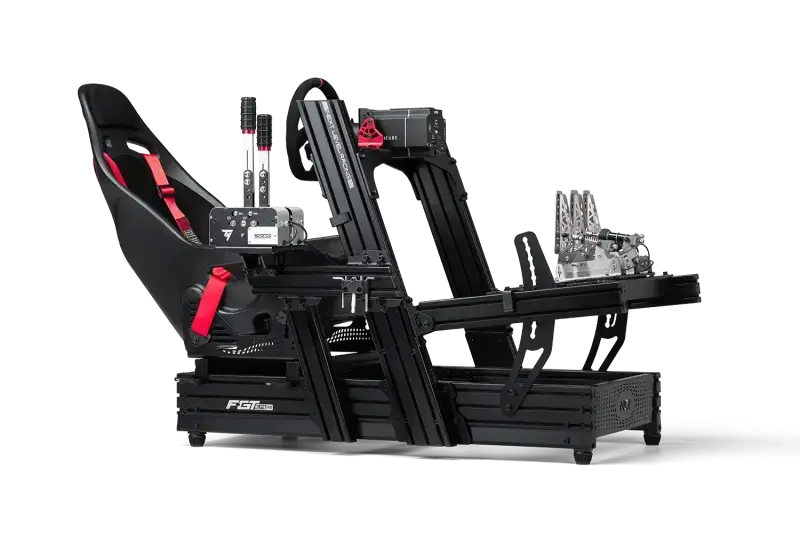

Requirements: Designed for F-GT Elite 160 Series cockpits, including the Next Level Racing F-GT Elite 160 Wheel Plate Edition. The current official list does not name Fanatec ClubSport DD or DD+, so SRW does not claim that combination.
Specifications
Product type
Front Mount
Net weight
6.49 kg
What's in the box?
- Side-mount arms, front-mount bracket, side-mount plates and DD spacers
- M6/M8 bolts, washers, nylon washers, flange nuts and 10 T-nuts
- 4 felt pads
Frequently asked questions
Does it fit the Fanatec ClubSport DD+?
NLR's current list does not name ClubSport DD or DD+, so SRW does not claim DD+ compatibility.
Which cockpit does it require?
It is designed for the F-GT Elite 160 Series.
How much tilt adjustment is available?
70 degrees total: 40 degrees downward and 30 degrees upward, plus height and horizontal adjustment.
Do Simagic Alpha Evo bases need an extra bracket?
Yes. NLR requires the Simagic MB-F Bracket for the listed Alpha Evo models.
Is mounting hardware included?
Yes. The official box image lists the mount parts, spacers, M6/M8 hardware, T-nuts and felt pads.
